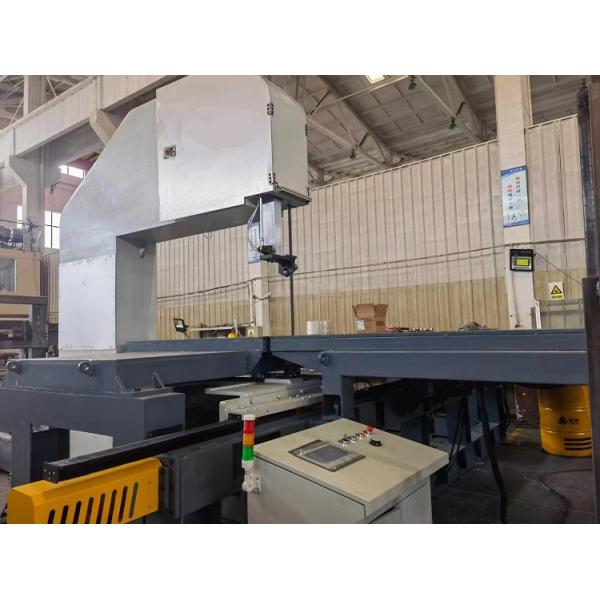

High-speed CNC vertical metal band saw machine sawing Aluminium plate and bar

Brand Name : PSL

Model Number : SF0615-40

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10-20 sets

Delivery Time : 90-120days

Packaging Details : Naked in container

Condition : New

Product name : big professional cnc band saw machine,aluminum plate and bar cnc machining

Name : Precisely aluminum plate and bar Cnc Machining

Logo : PSL, OEM

Material capabilities : Aluminum plate,Copper plate

Application : Industrial Aluminum plate and bar processing

Cnc machining or not : CNC Machining

Service : Customized OEM,CNC machining,Manufacturer

Cnc or not : CNC,Yes

Drawing format : PDF/DWG/IGS/STP/ etc

Equipment : CNC Machining Center,machine

Sawing capacity : sawing length 4000mm

Servo feeding : 4000mm

Cutting speed : 800-2500 mm/min (frequency control)

Tolerance : 0.1mm

main Power(w) : 22KW

Dimension(l*w*h) : 9500*5500*2900mm

Weight : 11.5T

Voltage : 220V/380V/415V, 50HZ/60HZ

Color : Silvery white,Customized

Warranty : 1 Year

After-sales service provided : Engineers available to service machinery overseas,Video technical support,Online support

Contact Now

High-speed CNC vertical metal band saw machine sawing Aluminium plate and bar

Purpose of equipment,

It is mainly used for slitting of aluminum alloy plate and bar.

Main technical parameters,

Sawing capacity (mm): throat height 600, throat depth 1500,

sawing stroke 4000, feeding stroke 4000

The saw belt turned 0 degrees

Diameter of saw wheel (mm): Φ 860 * 2 wheels

Saw wheel material: duralumin alloy: 7075T651 hard anodizing

Saw belt material: hard alloy: saw belt (Taiju TCB does not separate teeth)

Sizes of saw band (mm): about 7660 length * 41 width * 1.3 thickness *2 / 3 teeth (length shall be subject to the final design)

Band sawing speed(M / min): 800-2500 (frequency control)

Band saw motor: Taiwan TACO frequency motor 22KW (6p)

Main drive system: aluminum alloy pulley + multi wedge belt (dynamic balance treatment)

The tension mode of saw belt: independent hydraulic automatic tension

(belt breaking protection function)

Feeding mode: saw bow feed

Feeding slider: Taiwan Hiwin linear 2sets

Feeding speed (M / min): 0-3000 (servo motor + ball screw + linear slide)

Floating material feeding mode: hydraulically driven floating material roller feeding

Thickness of incision (mm) ≤ 2

Cutting slope (mm) ≤ 0.1/500

Sawing unevenness (mm) ≤ 0.1/500

Sawing auxiliary machine: cyclone dust collector

Service life of saw blade ㎡: ≥ 10

Equipment supply scope, (state: B-Buyer, S-Seller)

No.	Name of part	Design	Supply	Unit	Qty.	Remark
1	High-speed Vertical Band sawing machine	S	S	set	1
1.1	Sawing bow	S	S	set	1	Precision machining of welding structural parts
1.2	Driving wheels	S	S	set	1	Al. Alloy saw belt wheel
1.3	Main drive system	S	S	group	1	Al.Alloy pulley + multi wedge belt
1.4	Driven wheel	S	S	group	1	Al. alloy saw belt wheel + hydraulic auto tension device
1.5	Substructure	S	S	group	1	Precision machining, welding mechanism
1.6	Feeding slider	S	S	pc	2	Linear guider imported from Taiwan
1.7	Feeding servo unit	S	S	group	1	Delta servo motor + precision planetary reducer
1.8	Raw material feeding mechanism	S	S	group	3	Hydraulic driving
1.9	Inner & outer machine bed	S	S	group	2	Welded structure
1.10	Saw belt cooling device	S	S	set	1	Air pressure oil mist cooling

2	Hydraulic system	S	S	group	1
2.1	Oil tank	S	S	set	1	Made by manufacturer2
2.2	Pump station	S	S	group	1	Pump: Hitech; Motor: Dongling
2.3	Temperature control device	S	S	group	1	Forced air cooling

3	Pipelines	S	S
3.1	T.O.P. to the equipment	S	S	group	1	Including electricity, compressed air tubes,etc…
3.2	Internal pipelines	S	S	group	1	Preset dust collection pipes

4	Attached spare parts	S	S
4.1	Sawing band	S	S	band	2	Carbide sawing band
4.2	Cooling oil for Band	S	S	gallon	2

5	Auxiliary equipment	S	S			Optional configuration
5.1	Auto sawdust collection device	S	S	set	1	Option
